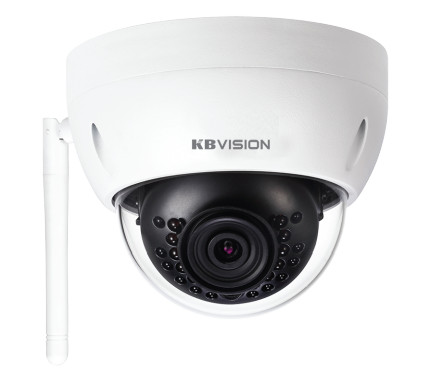

- Mã sản phẩm: KM-2030WDN
- Giá: Liên hệ
- Tình trạng: còn hàng
- Bảo hành : 24 tháng
- Lượt xem: 646
- Bảng giá:
Đặc tính kỹ thuật
|
Model |
KM-2030WDN |
|
|
Image Sensor |
1/3 inch 3.0 Megapixel progressive scan CMOS |
|
|
Effective Pixels |
2304(H) x 1536(V) |
|
|
Scanning System |
Progressive |
|
|
Electronic Shutter Speed |
Auto/ Manual, 1/3(4) - 1/100000s |
|
|
Min. Illumination |
0.1Lux/F2.0 (Color), 0 Lux/ F2.0 (IR ON) |
|
|
S/N Ratio |
More than 50dB |
|
|
Camera Features |
||
|
Max. IR LEDs Length |
30 m |
|
|
Day/Night |
Auto (ICR)/ Color/ B/W |
|
|
Backlight Compensation |
BLC/ HLC/ DWDR |
|
|
White Balance |
Auto/ Manual |
|
|
Gain Control |
Auto/ Manual |
|
|
Noise Reduction |
3D |
|
|
Privacy Masking |
Up to 24 areas |
|
|
Lens |
||
|
Focal Length |
3.6mm |
|
|
Max Aperture |
F2.0 (F2.0) |
|
|
Focus Control |
Auto |
|
|
Angle of View |
H: 77°(100°) |
|
|
Lens Type |
Fixed lens |
|
|
Mount Type |
Board-in Type |
|
|
Video |
||
|
Compression |
H.264/ H.264H/ H.264B/ MJPEG |
|
|
Resolution |
3M (2304 x 1296)/1080P (1920 x 1080)/ 720P (1280 x 720)/ VGA (640 x 480)/ QVGA (320 x 240) |
|
|
Frame Rate |
Main Stream |
3M (1 ~ 20fps)/1080P(1 ~ 25/30fps) |
|
Sub Stream |
VGA/QVGA(1 ~ 25/30fps) |
|
|
Bit Rate |
H.264: 32kbps ~ 8192Kbps |
|
|
Network |
||
|
Ethernet |
RJ-45 (10/100Base -T) |
|
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPoE, DDNS, QoS, UPnP, PNTP, FTP, IP Filter, Bonjour |
|
|
Compatibility |
ONVIF, CGI |
|
|
Max. User Access |
20 users |
|
|
Wifi |
Wi-Fi (IEEE802.11b/g/n), 50m (open eld) |
|
|
Smart Phone |
iPhone, iPad, Android, Windows Phone… |
|
|
Auxiliary Interface |
||
|
Memory Slot |
Micro SD card, up to 128GB |
|
|
General |
||
|
Power Supply |
12VDC |
|
|
Power Consumption |
< 5.5W (IR ON) |
|
|
Ingress Protection |
IP67 |
|
|
Vandal Resistance |
IK10 |
|
|
Dimensions |
Φ110 x 81mm |
|
|
Weight |
0.55kg |
|
- Thương hiệu KBVISION của Mỹ.
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
