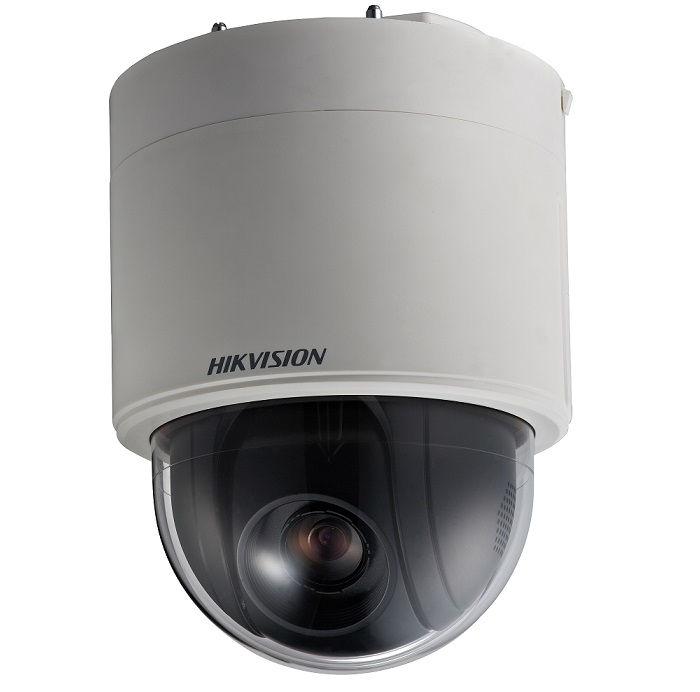

Camera IP Speed Dome HD 2.0 Megapixel HIKVISION DS-2DE5230W-AE3

Model

DS-2DE5230W-AE3

Image Sensor

1/2.8 inch Progressive Scan CMOS

Effective Pixels

1920(H) x1080(V)

Minimum Illumination

F1.6, AGC On: Color: 0.05 lux, B/W: 0.01 lux

White Balance

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC

Auto/Manual

S/N Ratio

≥ 52dB

BLC

ON/OFF

WDR

Support

Shutter Time

1/1~1/10,000s

Day& Night

ICR

Digital Zoom

16X

Privacy Masking

8 privacy masks programmable

Lens

Focal Length

4.3~ 129mm, 30x

Zoom Speed

Approx.3s (Optical Wide~Tele)

Angle of View

65.5-2.11 degree (Wide~Tele)

Minimum Working Distance

10~1,500mm(Wide~Tele)

Aperture Range

F1.6 ~ F5.0

Pan & Tilt

Pan Range

Pan: 0~360° endless

Pan Speed

0.1°~250°/s, Pan Preset Speed: 300°/s

Tilt Range

5°~90° (Auto Flip)

Tilt Speed

0.1°~150°/s, Tilt Preset Speed: 200°/s

Number of Preset

300

Partrol

8 patrols, up to 32 presets per patrol

Park Action

Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

Alarm

Alarm Input

2

Alarm Output

1

Alarm Actions

Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage

Input & Output

Audio Input

1 Mic in/Line in interface

Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%

Audio Output

1 Audio output interface

Line level, impedance: 600Ω

Network

Ethernet

10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution

1920 x 1080

Image Compression

H.264/ MJPEG

Audio Compression

G.711ulaw/G.711alaw/G.726/MP2L2/G.722

No. of Simultaneous Users

Up to 20 users

Three-Stream

Support

Mini SD Card

Support up to 128GB Micro SD/ SDHC/ SDXC card. Support Edge recording

User/Host Level

Up to 32 users, 3 Levels: Administrator, Operator and User

Security Measures

User authentication (ID and PW), Host authentication (MAC address), IP address filtering

Client GUI

Web Browser

IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +

General

Power Supply

12VDC or PoE (802.3af, class4)

Power Consumption
