Model
|

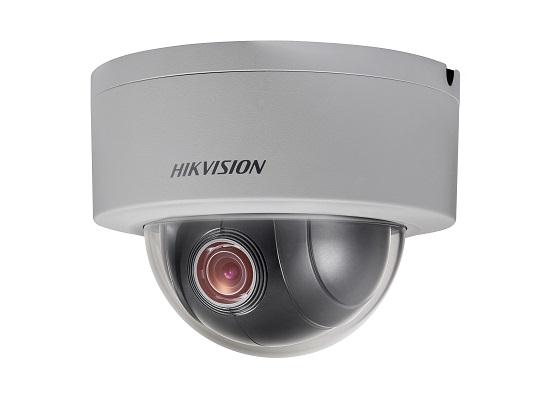

DS-2DE3204W-DE
|
|
Image Sensor
|
1/3 inch Progressive Scan CMOS
|
|
Effective Pixels
|
1920(H) x1080(V)
|
|
Minimum Illumination
|
F1.6, AGC On: Color: 0.05 lux, B/W: 0.01 lux
|
|
White Balance
|
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
|
|
AGC
|
Auto/Manual
|
|
BLC
|
ON/OFF
|
|
HLC
|
Support
|
|
WDR
|
Support
|
|
Shutter Time
|
1/1~1/10,000s
|
|
Day& Night
|
ICR
|
|
Digital Zoom
|
16X
|
|
Privacy Masking
|
8 privacy masks programmable
|
|
Auto Focus
|
Auto/ Semi-automatic/ Manual
|
|
Lens
|
|
Focal Length
|
2.8~12mm, 4x
|
|
Zoom Speed
|
Approx.1s (Wide~Tele)
|
|
Angle of View
|
105~33.5 degree (Wide~Tele)
|
|
Aperture Range
|
F1.6 ~F2.7
|
|
Pan & Tilt
|
|
Pan Range
|
Pan: 0~350°
|
|
Pan Speed
|
Pan Manual Speed: 0.1°~60°/s
|
|
Tilt Range
|
Tilt: 0°~90°
|
|
Tilt Speed
|
Tilt Manual Speed: 0.1°~50°/s
|
|
Proportional Zoom
|
Rotation speed can be adjusted automatically according to zoom multiples
|
|
Number of Preset
|
300
|
|
Power loss recovery
|
Support
|
|
Park Action
|
Preset
|
|
PTZ Position Display
|
ON/OFF
|
|
Alarm
|
|
Alarm Input
|
1
|
|
Alarm Output
|
1
|
|
Alarm Trigger
|
Tampering alarm, Network disconnect, IP address conflict, Storage exception
|
|
Alarm Actions
|
Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage
|
|
Input & Output
|
|
Audio Input
|
1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
|
|
Audio Output
|
1 Audio output interface
Line level, impedance: 600Ω
|
|
Network
|
|
Ethernet
|
10Base -T, /100Base-TX, RJ45 Connector
|
|
Max.Image Resolution
|
1920 x 1080
|
|
Image Compression
|
H.264/ MJPEG
|
|
ROI encoding
|
Support 4 areas with adjustable levels
|
|
Audio Compression
|
G.711ulaw/G.711alaw/G.726/MP2L2/G.722
|
|
No. of Simultaneous Users
|
Up to 20 users
|
|
Dual Stream
|
Support
|
|
Mini SD Card
|
Support up to 128GB Micro SD/ SDHC/ SDXC card. Support Edge recording
|
|
User/Host Level
|
Up to 32 users, 3 Levels: Administrator, Operator and User
|
|
Security Measures
|
User authentication (ID and PW), Host authentication (MAC address), IP address filtering
|
|
EZVIZ
|
Support
|
|
Client GUI
|
|
Date & Time Display
|
Time: Week: Date, 6 formats on the Client
|
|
Client
|
Support iVMS-4200
|
|
Web Browser
|
IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
|
|
General
|
|
Menu Language
|
English
|
|
Power Supply
|
12VDC or PoE (802.3af, class3)
|
|
Power Consumption
|
Max. 8W
|
|
Protection Level
|
IP67, IK10, TVS 4,000V lightning protection, surge protection and voltage transient protection
|
|
Mounting
|
Various mounting modes optional
|
|
Dimensions
|
Φ140.7 x 107.2mm
|
|
Weight
|
950g
|
