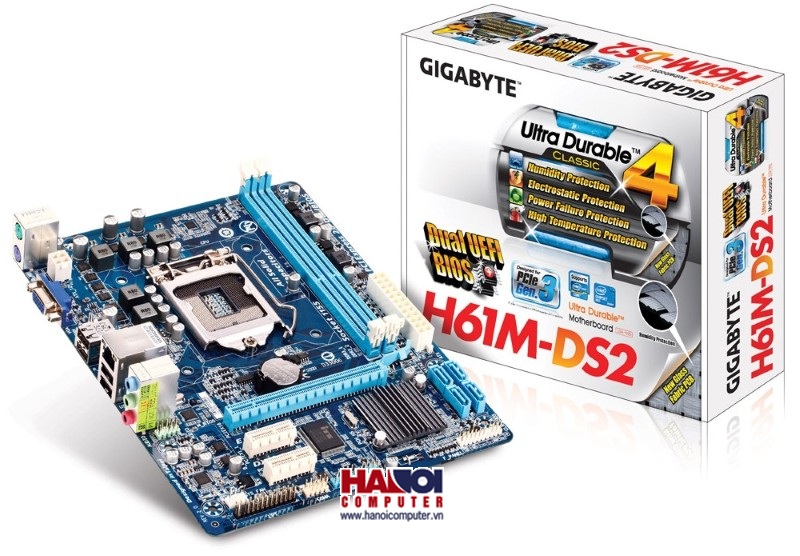

Mainboard GIGABYTE™ H61M-DS2 V 5.0

Mô tả chi tiết Hãng sản xuất GIGABYTE Chủng loại Mainboard GIGABYTE™ H61M-DS2 V 5.0 CPU hỗ trợ Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package Chipset Intel® H61 Bộ nhớ trong 2 x DDR3 1333/1066/800 MHz, Un-buffered Memory up to 16GB Duad Channel Memory Architecture VGA onboard Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output Âm thanh Realtek ALC887 audio codec High Definition Audio 2/4/5.1/7.1-channel Mạng Intel®, 1 x Gigabit LAN Controller(s) Khe mở rộng 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility. 2 x PCI Express x1 slots Chuẩn lưu trữ 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices Cổng giao tiếp trước và sau 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x parallel port 1 x serial port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Microphone) Công nghệ tích hợp Support for @BIOS Support for Q-Flash Support for Smart Recovery2 Support for EasyTune * Available functions in EasyTune may differ by motherboard model. Support for ON/OFF Charge Kích thước M-ATX Form Factor Phụ kiện đi kèm Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata
