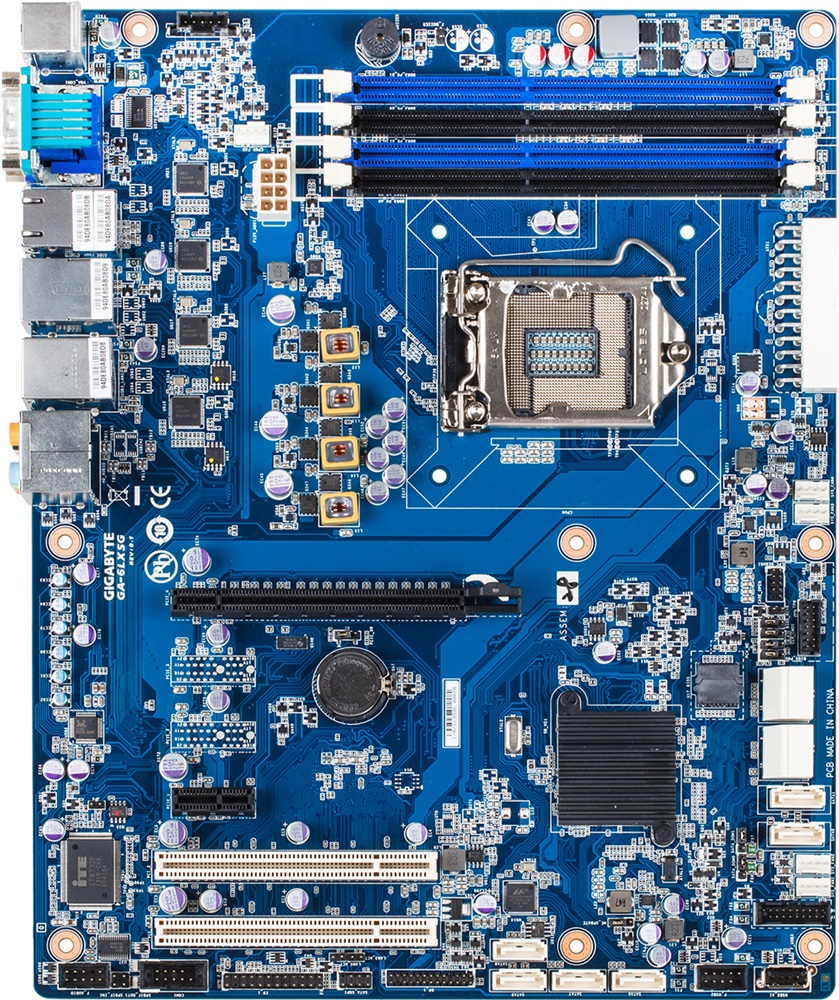

| Form Factor | ATX 305W x 244D (mm) |
| CPU | Supports Intel® Xeon® processor E3-1200 V3 product family Supports 4th gen Intel® Core™ processor family |
| Socket | 1 x LGA 1150 |
| Chipset | Intel® H87 |
| Memory | 4 x DIMM slots Supports non-ECC, un-buffered UDIMM modules only Supports single rank and dual rank UDIMM modules Up to 32GB 1333/1600/(1866*) MHz *Supported by Intel® Xeon® E3-1200 V4 processors only |
| LAN | 4 x GbE LAN ports (Intel® I210) |
| Video | Integrated graphics processor 1 x VGA port, supporting a maximum resolution of 1920x1200 |
| Audio | Realtek® ALC887 controller Supports 2/4/5.1/7.1 channel configurations |
| SAS | - |
| SATA | 6 x SATA III 6Gb/s ports via Intel® H87 chipset 4 x SATA III 6Gb/s ports via Marvell® 88SE9230 chipset |
| RAID | Intel® SATA RAID 0/1/10/5 Marvell® SATA RAID 0/1/10 |
| Expansion Slots | 1 x PCIe x16 (Gen3 x16 bus) slot 1 x PCIe x1 (Gen2 x1 bus) slot 2 x PCI slots |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 10 x SATA III 6Gb/s ports 1 x TPM header 1 x USB 3.0 header 1 x USB 2.0 header 1 x USB 2.0 Type A connector 1 x Front panel header 1 x Back plane board header 1 x Front panel audio header 4 x System fan headers 1 x CPU fan header 1 x S/PDIF-In header 1 x S/PDIF-Out header 1 x Serial port header 1 x SATA SGPIO header 1 x Case open intrusion header 1 x Clear CMOS jumper 1 x SATA port 0 DOM Support jumper 1 x SATA port 1 DOM Support jumper 1 x Clear password jumper 1 x BIOS Recovery jumper 1 x ME Recovery jumper |
| Rear I/O | 2 x USB 3.0 4 x USB 2.0 1 x PS/2 1 x VGA 1 x Serial 4 x RJ45 6 x Audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone) |
| TPM | 1 x TPM header |
| OS Supported | Windows Server 2008 R2 SP1 (x64) Windows Server 2012 (x64) Windows 7 SP1 Ultimate (x86/x64) Windows 8 Enterprise (x86/x64) Red Hat Enterprise Linux 5.9 (x86/x64) Red Hat Enterprise Linux 6.4 (x86/x64) SUSE Linux Enterprise Server 11.3 (x86/x64) |
| Board Management | - |
| PSU Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Retail Packaging Content | 1 x Driver CD 1 x I/O shield 2 x SATA II 3Gb/s cables (500mm) |
